Description

Classic 1D Sod shock tube (Riemann problem) for validating compressible Euler solvers. Single-phase ideal gas (γ=1.4). At t=0.2: left-moving rarefaction, contact discontinuity, right-moving shock. This test now includes FV and DG (P1/P2/P3) comparisons and analytical-reference convergence outputs.

How to run

python run.py unit_tests/sod_shock_tube_1d.yaml
python run.py unit_tests/sod_shock_tube_convergence_1d.yaml

Config summary

• Domain: x ∈ [0, 1], 400 points
• Time: dt = 0.0001, 2000 steps (t_final = 0.2)
• Physics: euler mode, ideal gas (γ=1.4, p_∞=0); FV and DG discretizations available
• IC: Riemann at x=0.5 — Left: ρ=1, u=0, p=1; Right: ρ=0.125, u=0, p=0.1
• BC: transmissive; Reconstruction: first-order (use_muscl: false) for FV baseline
• Monitors: console, gif (rho, u, p, E, e_int), txt

Relevant Components

• Core Euler solver stack: compressible Euler (FV + DG, fluxes, EOS, limiter, implementation)
• Flux/EOS details: AUSM+UP / HLLC / HLLE fluxes, stiffened-gas EOS
• DG details: DG formulation (P1/P2/P3)
• Analytical benchmarking: analytical convergence mode
• Time integration: Forward Euler, RK4, SSP-RK3 (DG internal)
• Output monitors used here: console, gif, txt
• YAML configuration reference: solver config, monitor config

Output

Animated GIFs for density, velocity, pressure, total energy, and specific internal energy.

Density (ρ)

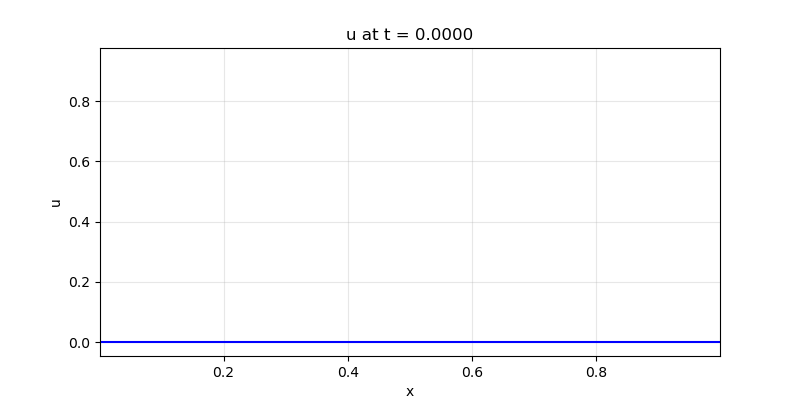

Velocity (u)

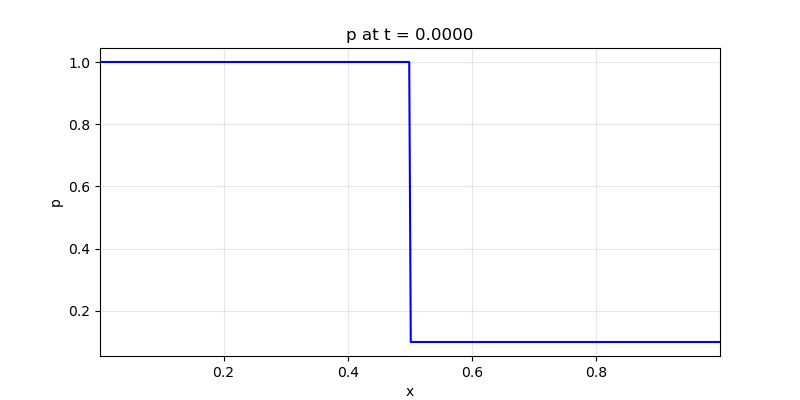

Pressure (p)

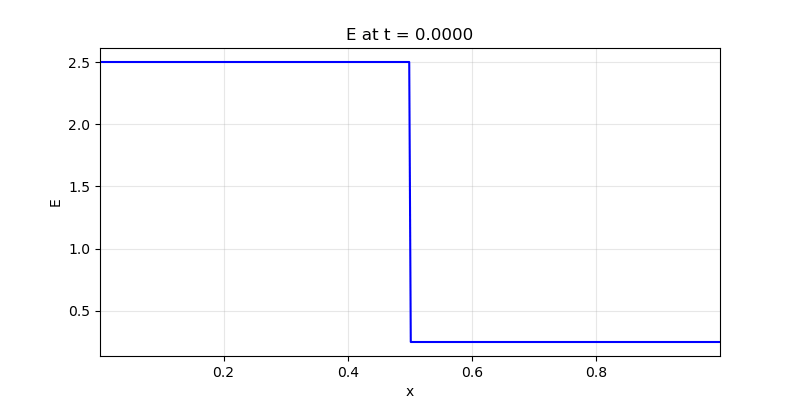

Total energy (E)

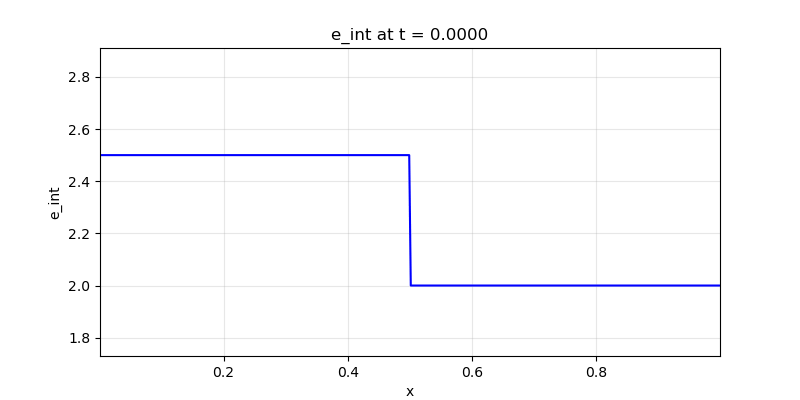

Specific internal energy (e_int)

New FV/DG Figure Set

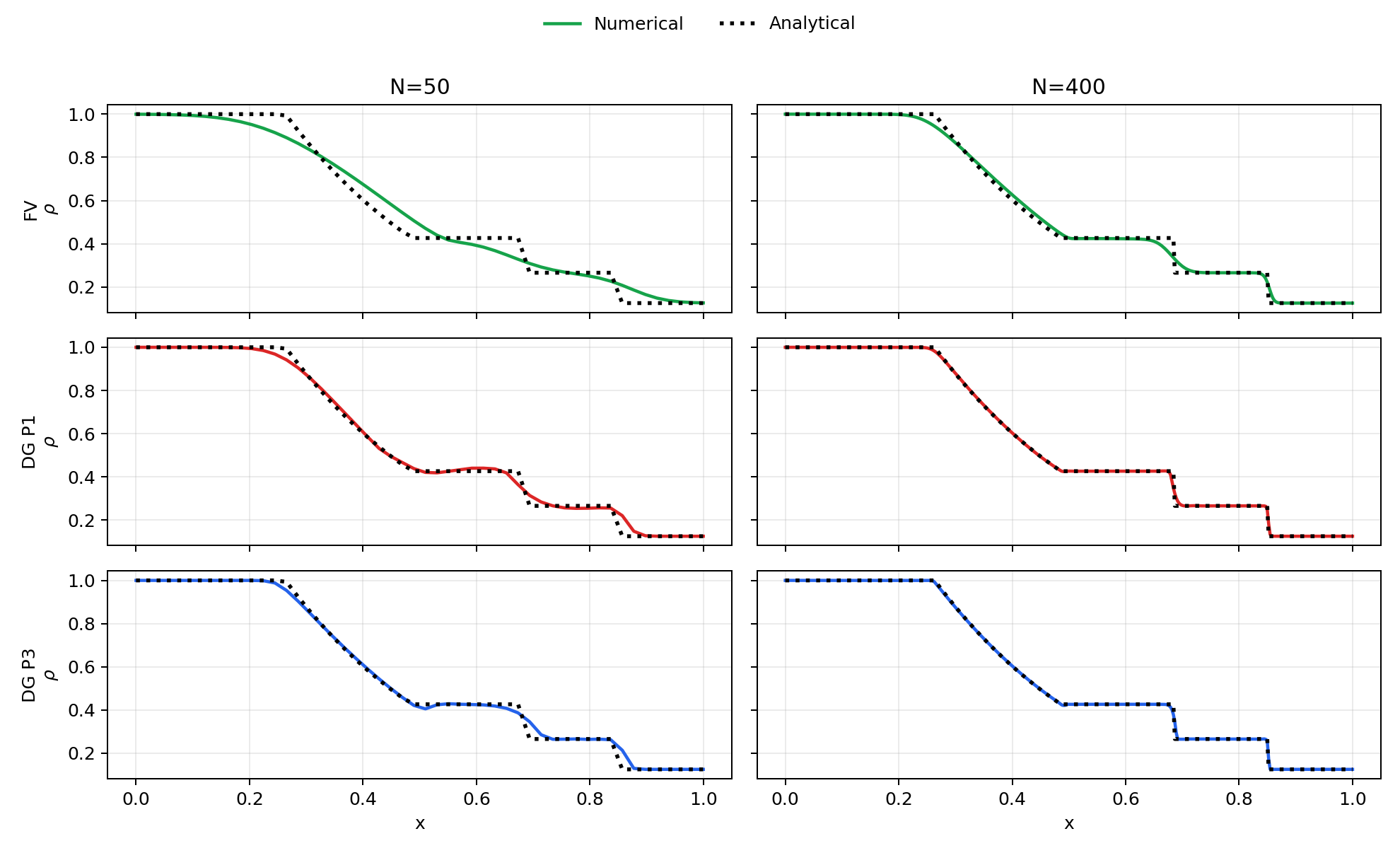

Method-by-resolution comparison with analytical Sod density

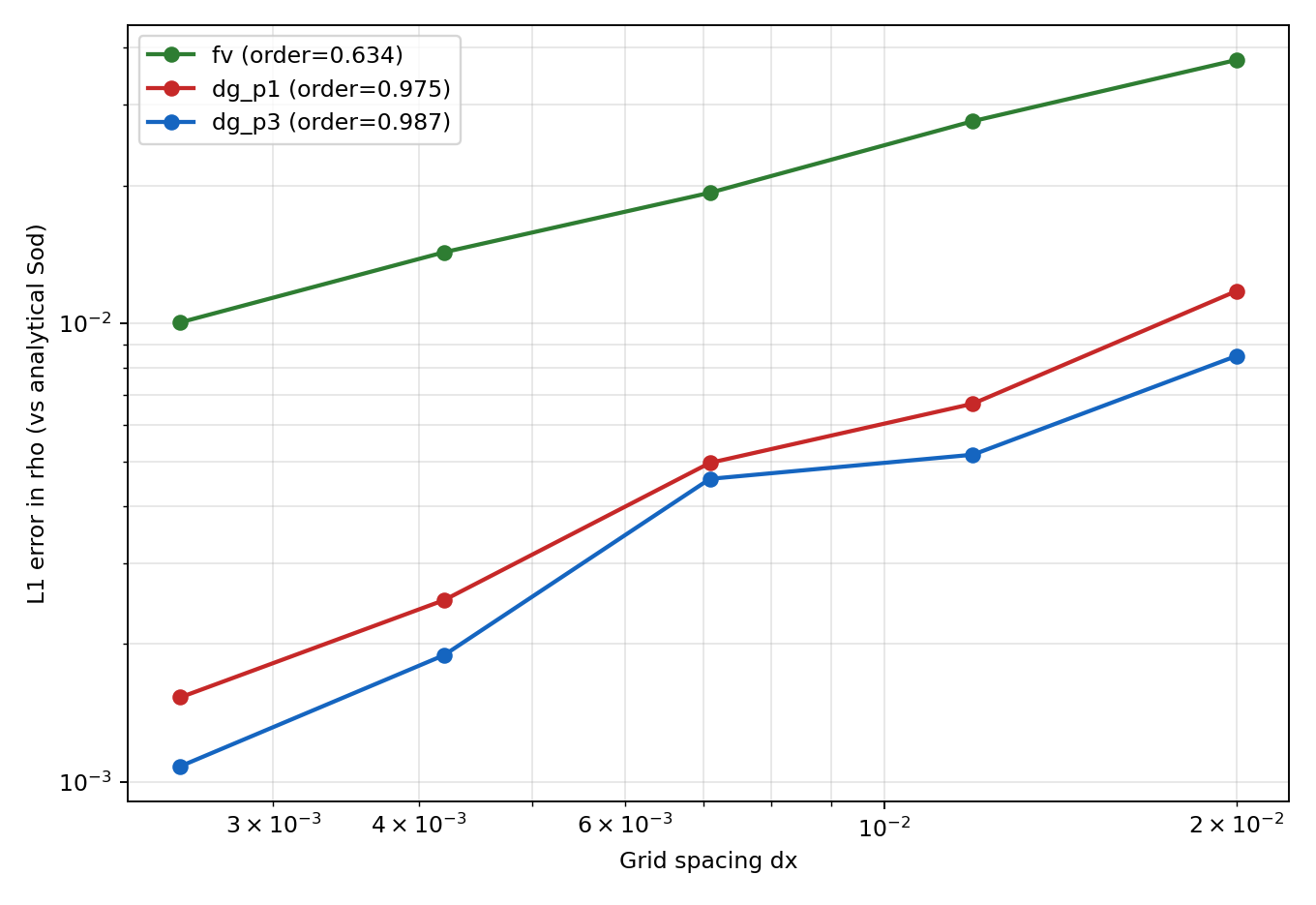

L1 convergence in density vs analytical Sod reference (fv, dg_p1, dg_p3)
